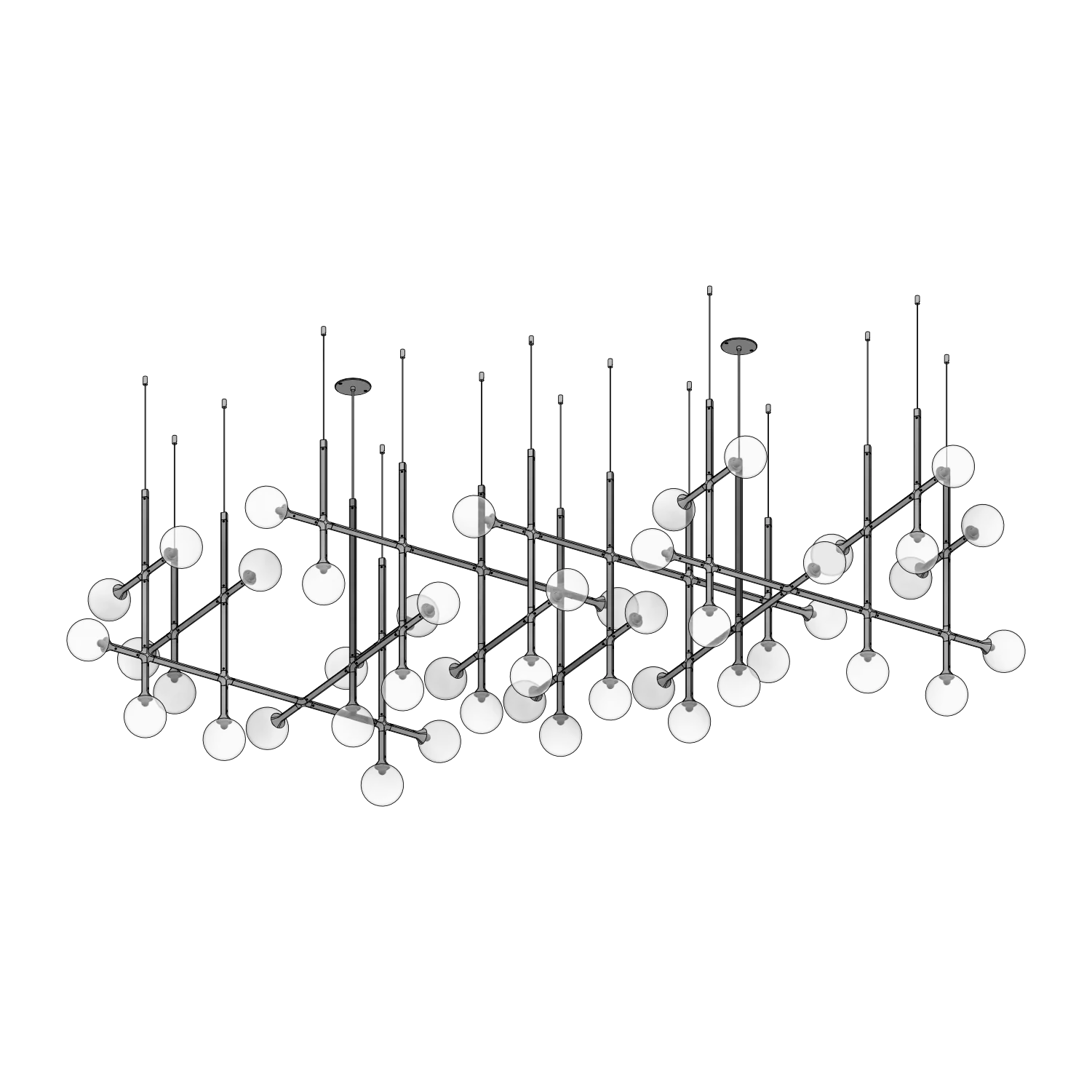

JUNIP 46-001 line drawing
DrawingJUNIP 46-001
Dimensions (in)
W109 5/8
D47 3/8
H32 1/2
Max drop110

109 5/8 W × 47 3/8 D × 32 1/2 H in · max drop 110 in

Not to scale

Lake + Wells · JUNIP 46-001
