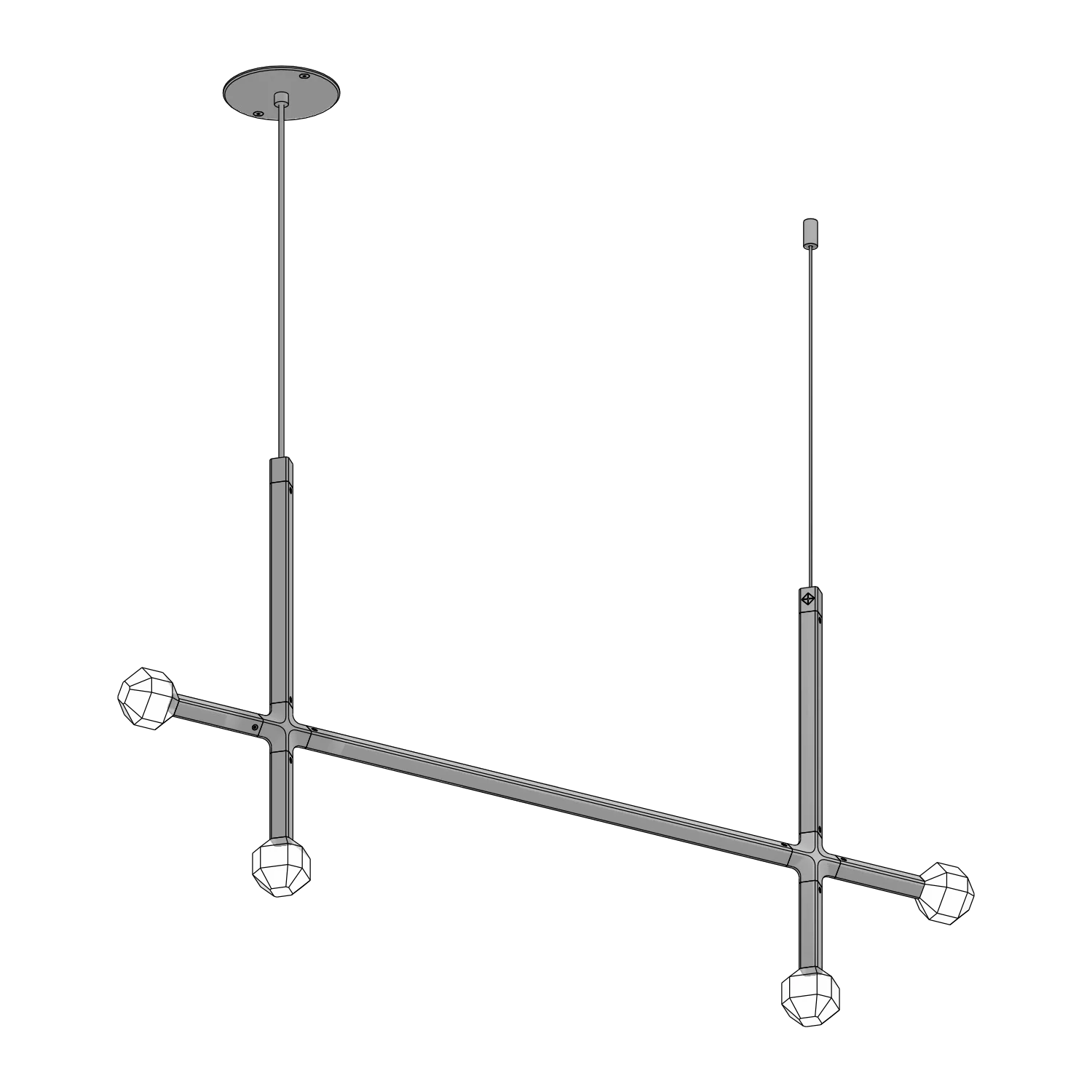

JOULLE 04-003 line drawing
DrawingJOULLE 04-003
Dimensions (in)
W35 1/8
D2.5
H17 1/2
Max drop110

35 1/8 W × 2.5 D × 17 1/2 H in · max drop 110 in

Not to scale

Lake + Wells · JOULLE 04-003
