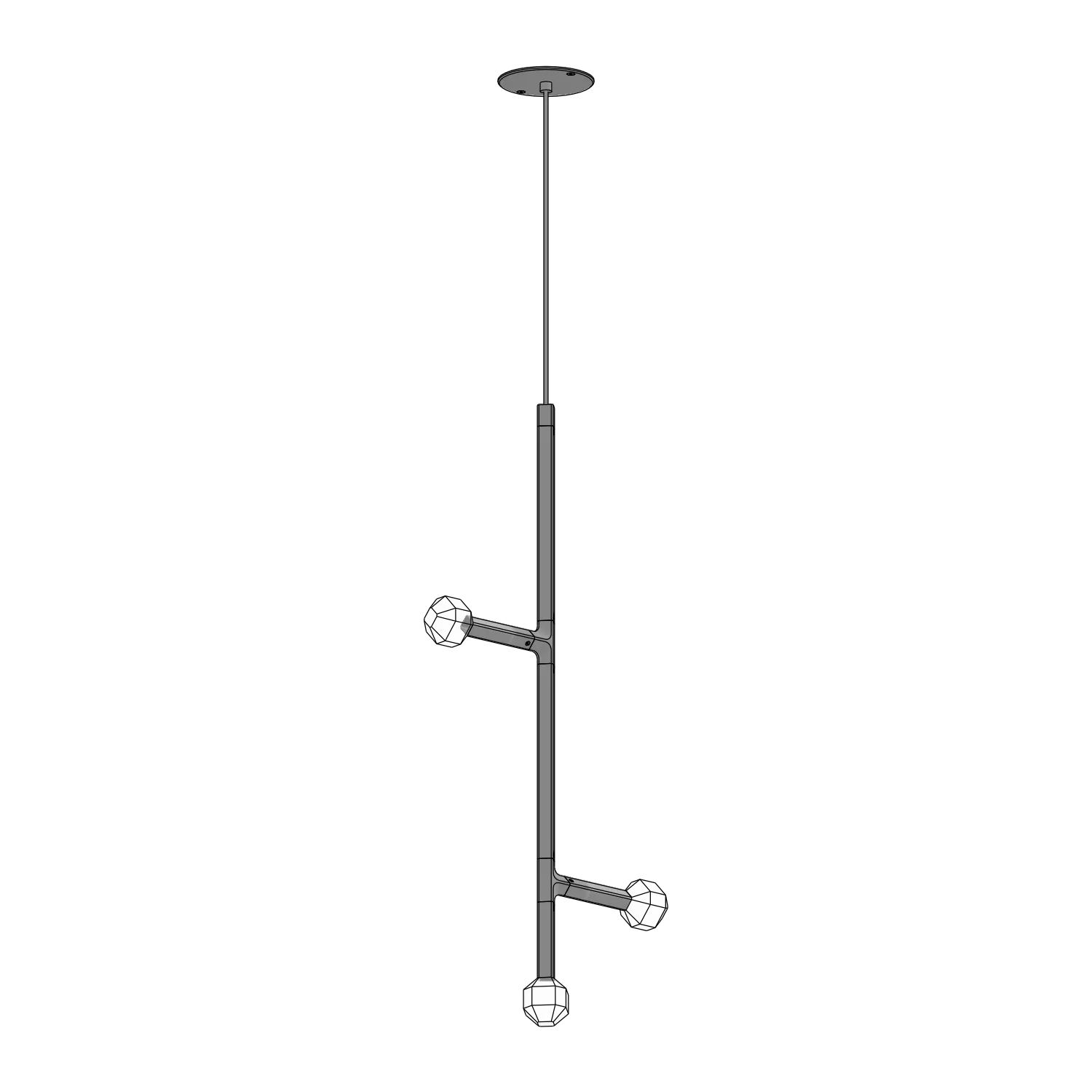

JOULLE 03-001 line drawing
DrawingJOULLE 03-001
Dimensions (in)
W13 1/8
D2.5
H28 1/2
Max drop110

13 1/8 W × 2.5 D × 28 1/2 H in · max drop 110 in

Not to scale

Lake + Wells · JOULLE 03-001
