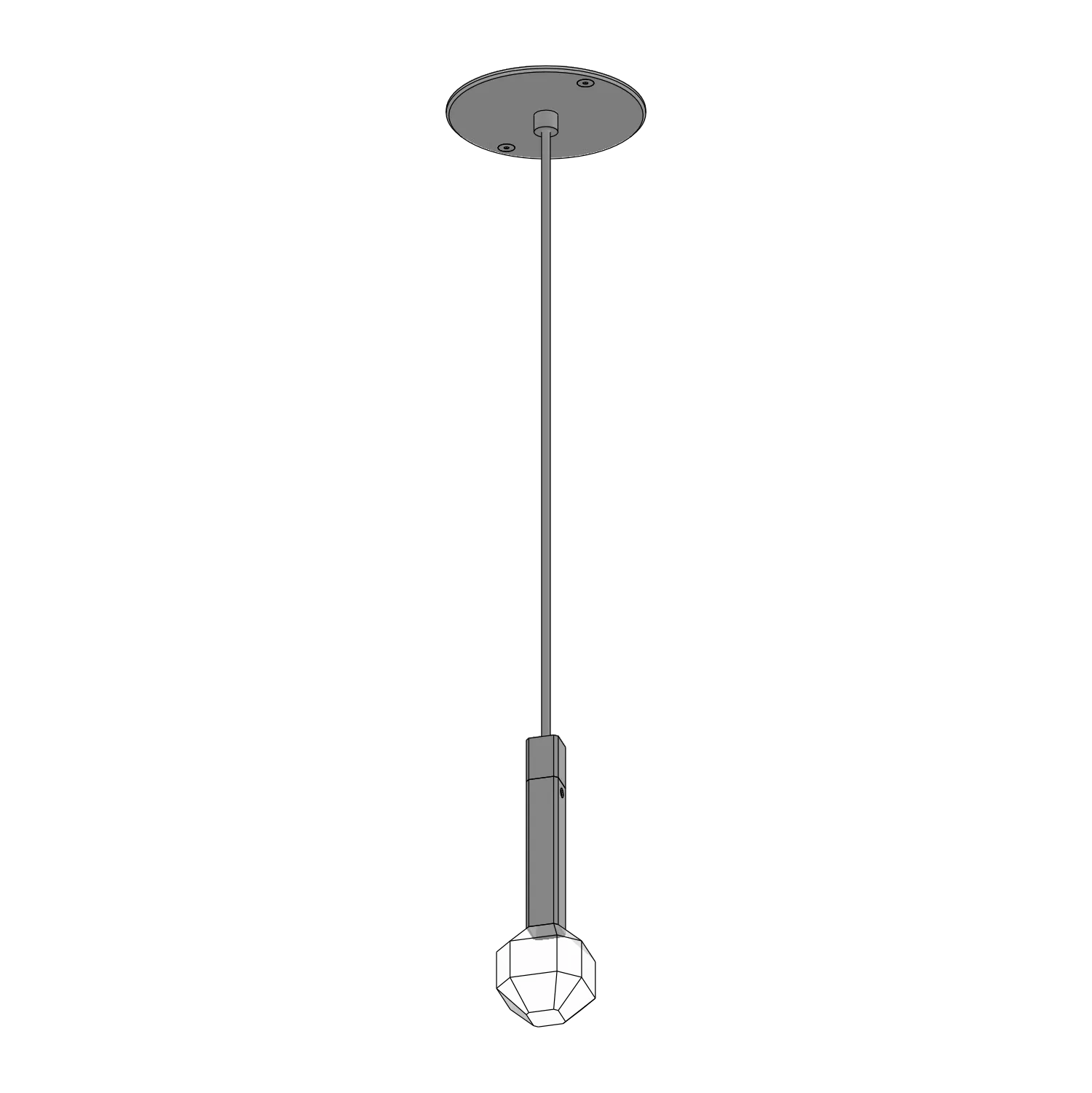

JOULLE 01-001 line drawing
DrawingJOULLE 01-001
Dimensions (in)
W2.5
D2.5
H6.54
Max drop110

2.5 W × 2.5 D × 6.54 H in · max drop 110 in

Not to scale

Lake + Wells · JOULLE 01-001
