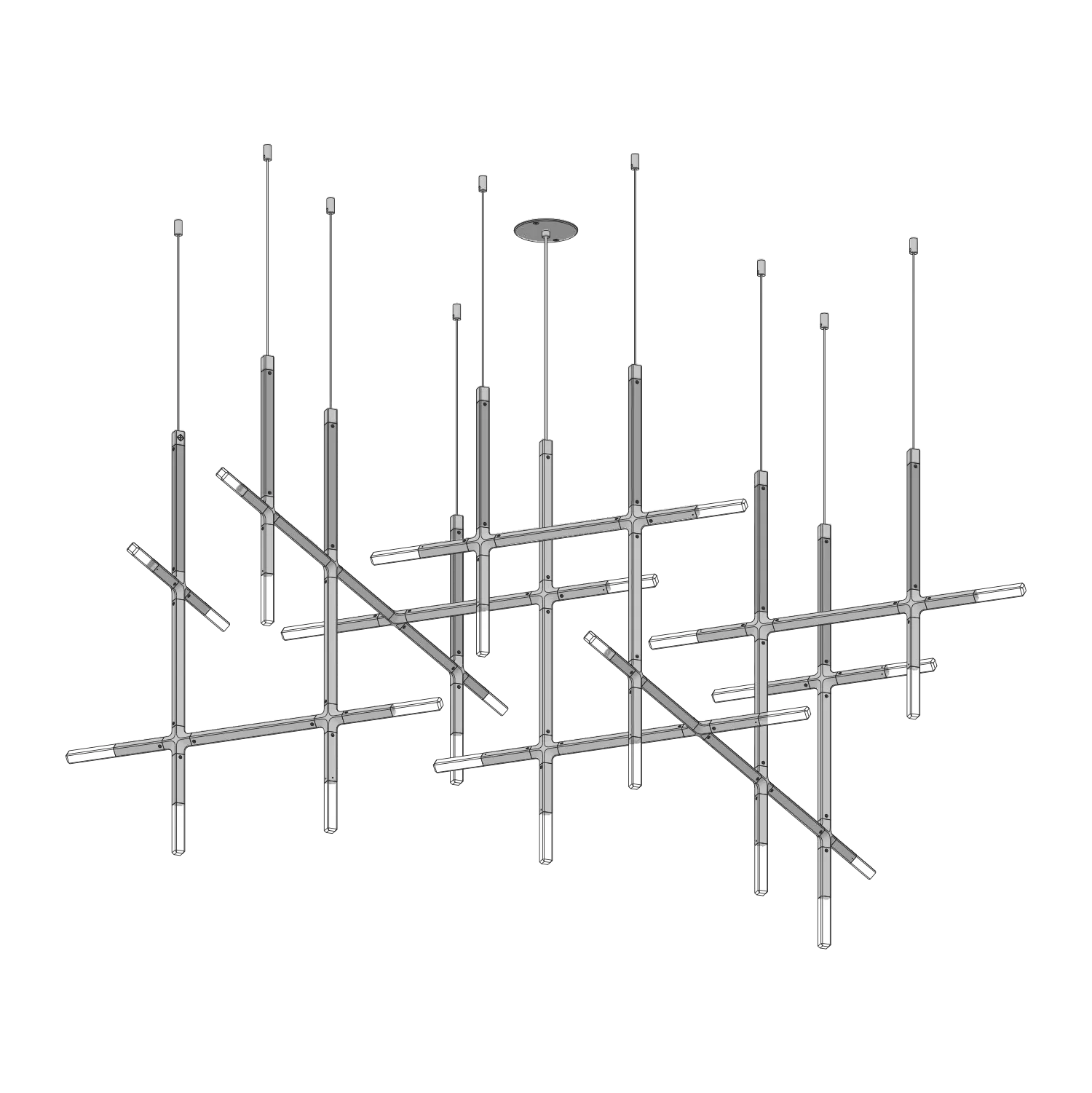

JAX 28-005 line drawing
DrawingJAX 28-005
Dimensions (in)
W58 7/16
D42 7/8
H30
Max drop110

58 7/16 W × 42 7/8 D × 30 H in · max drop 110 in

Not to scale

Lake + Wells · JAX 28-005
