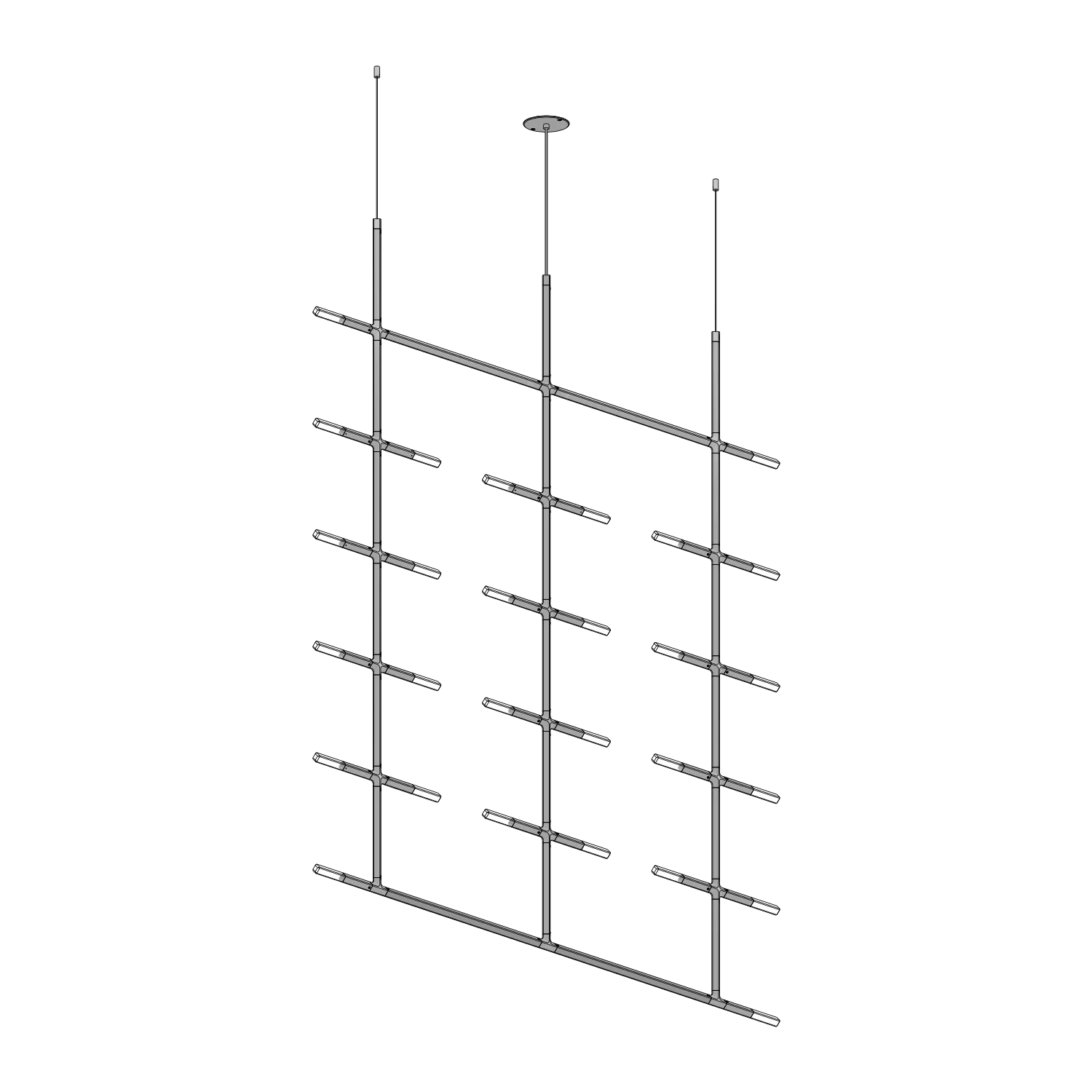

JAX 28-004 line drawing
DrawingJAX 28-004
Dimensions (in)
W60
D1
H66 3/8
Max drop110

60 W × 1 D × 66 3/8 H in · max drop 110 in

Not to scale

Lake + Wells · JAX 28-004
