Lookbook Configurator

JAX 16-003 line drawing

DrawingJAX 16-003

Dimensions (in)
W	38
D	38
H	41
Max drop	110

38 W × 38 D × 41 H in · max drop 110 in

Not to scale

Product

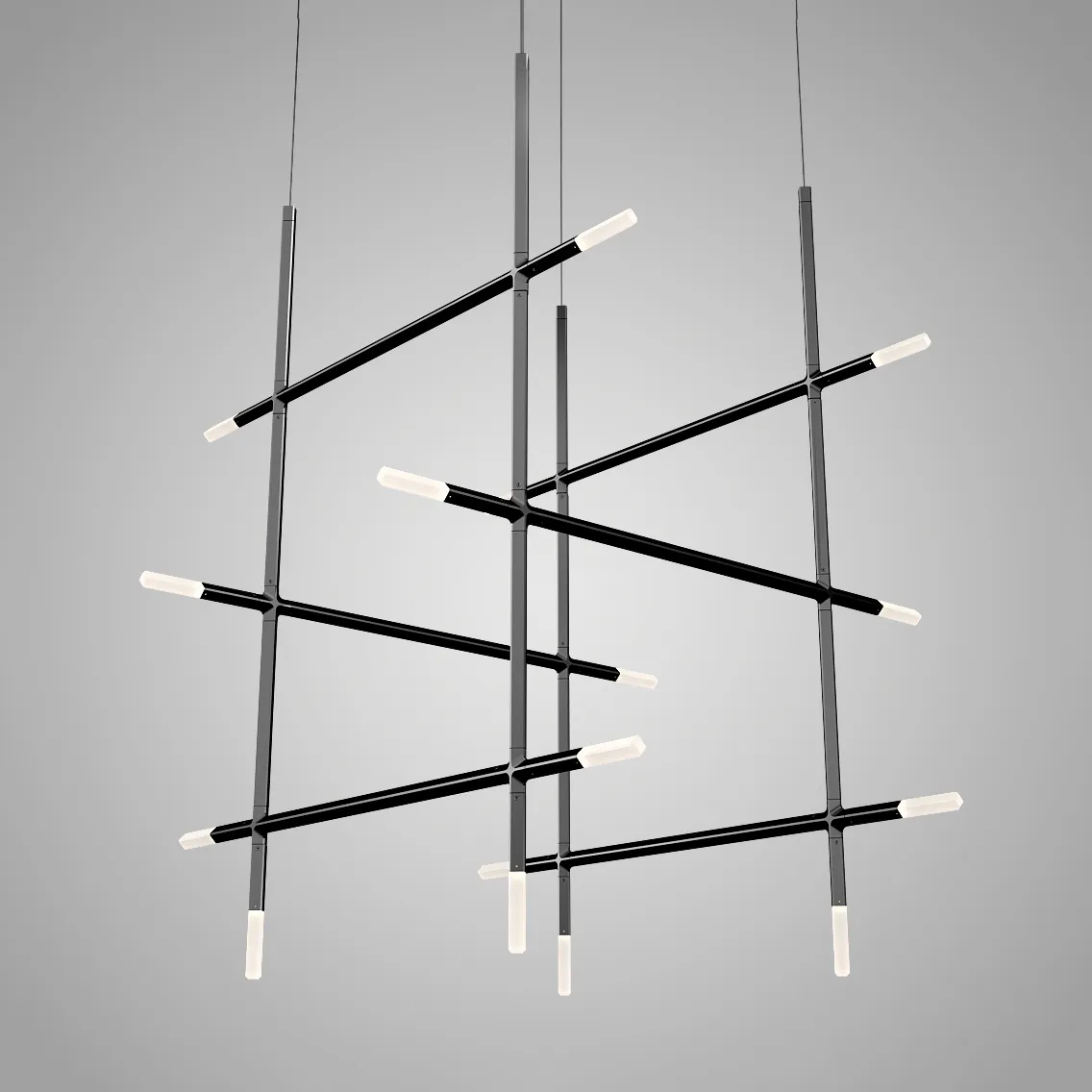

JAX 16-003

Chandelier · JAX Edition

Part of the Jax Lighting System. Mix Editions and design your own

List price

$8,292Free shipping · Made to order

Description

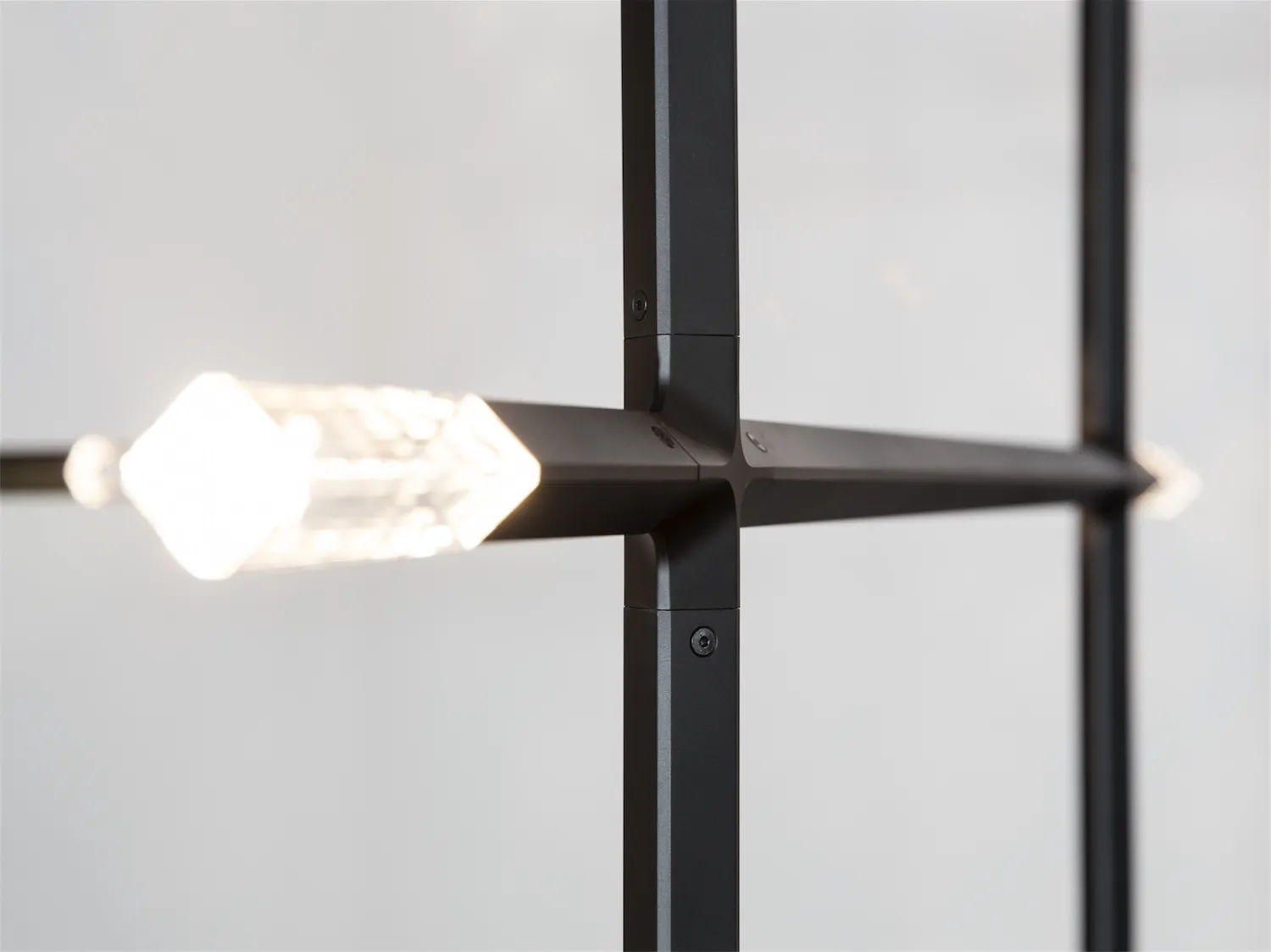

Jax translates the traditional crystal chandelier for a timeless future-past. Featuring machined aluminum and hand-polished cut crystal. A subtle chamfer crosses both materials, nodding to the archetypal cuts of chandelier prisms. Jax both honors and supplants the historic role of crystal in lighting, elevating it from an accessory to the proximal source of light.

Finish

Crystal

Smoke crystal is available with Satin Black.

SKUJAX 16-003 (GB/CLR)

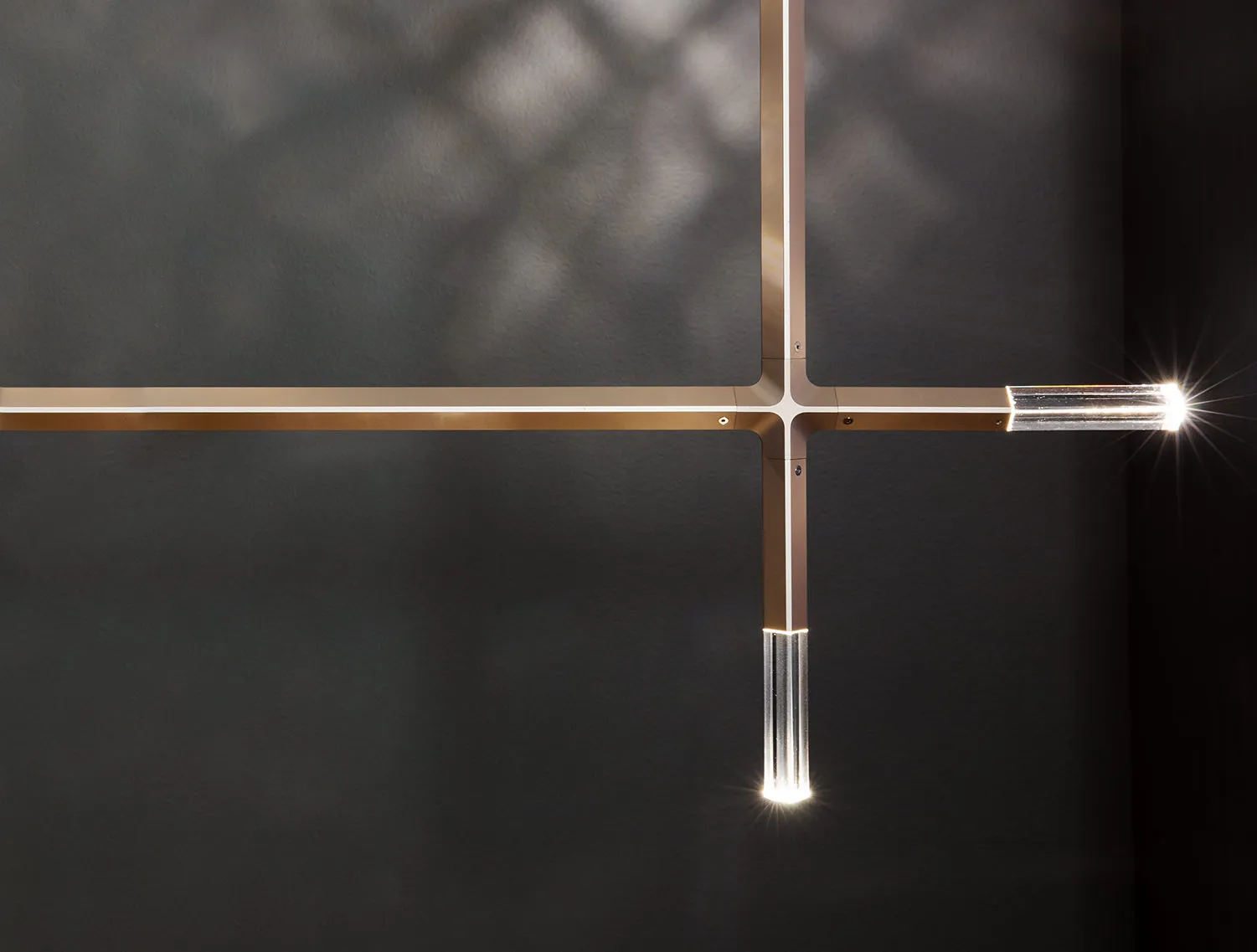

Satin Brass, Clear crystal

Buy · $8,292 Request a quote

Made to order. Specifications, availability and lead times may change. Contact us for the latest.

Lookbook Configurator

Key specs

Dimensions: 38 W × 38 D × 41 H in
Max drop: 110 in, adjustable
Light sources: 16 integrated LEDs, 3000K
Power: 1.3W per LED (20.8W total), 120V
Dimming: ELV and phase dimmable
Certification: ETL listed (120V, US/Canada)
Weight: 11.6 lb
Lead time: 8-10 weeks

Downloads

Trade

Contact us for trade pricing or custom layouts.

“And in that blackest moment a guiding force pulsed through the remnant, lighting the last city over the dark horizon.”

JAX Edition

Lake + Wells · JAX 16-003
