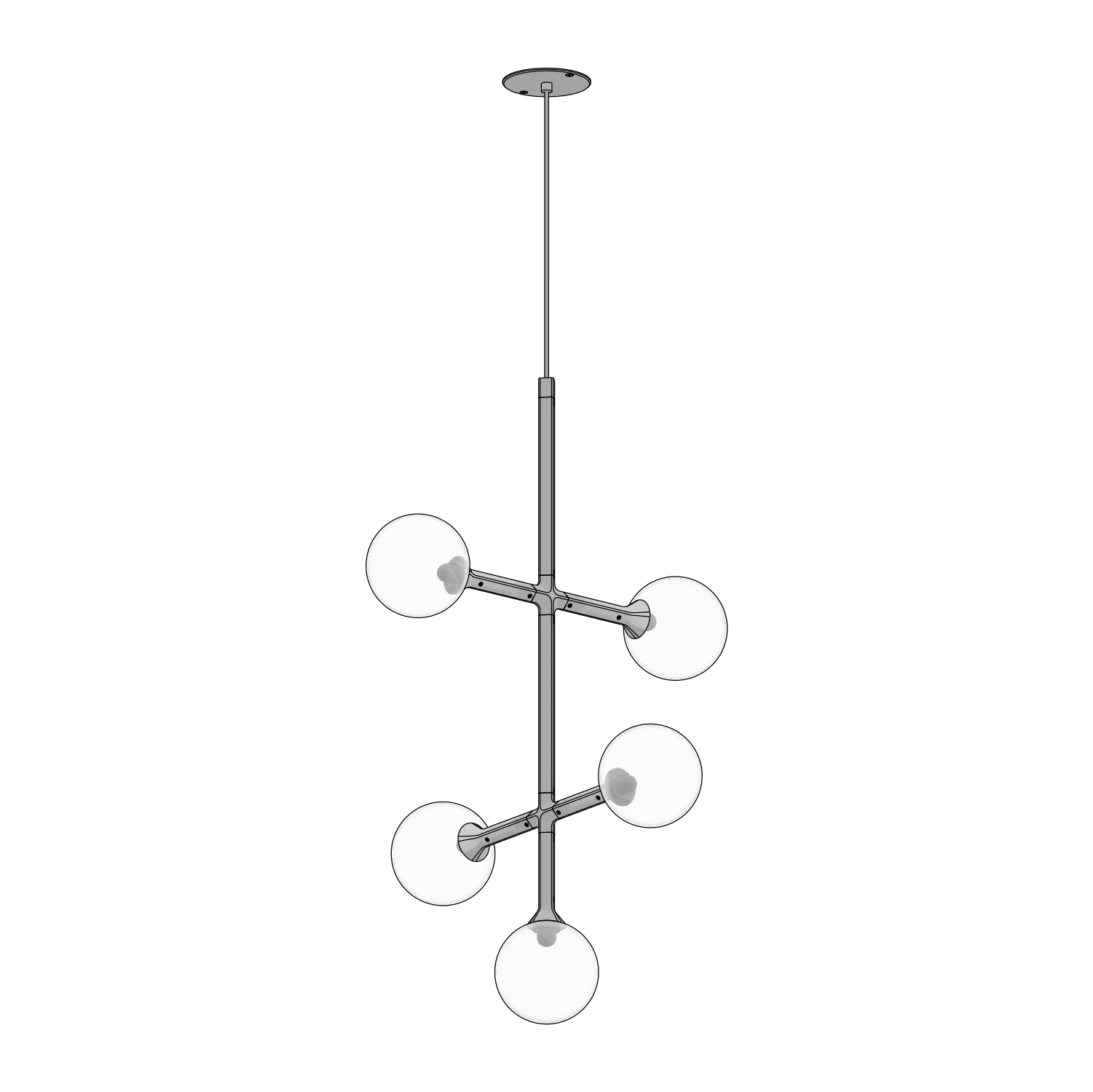

JUNIP 05-001 line drawing
DrawingJUNIP 05-001
Dimensions (in)
W20 15/16
D20 15/16
H32 7/16
Max drop110

20 15/16 W × 20 15/16 D × 32 7/16 H in · max drop 110 in

Not to scale

Lake + Wells · JUNIP 05-001
