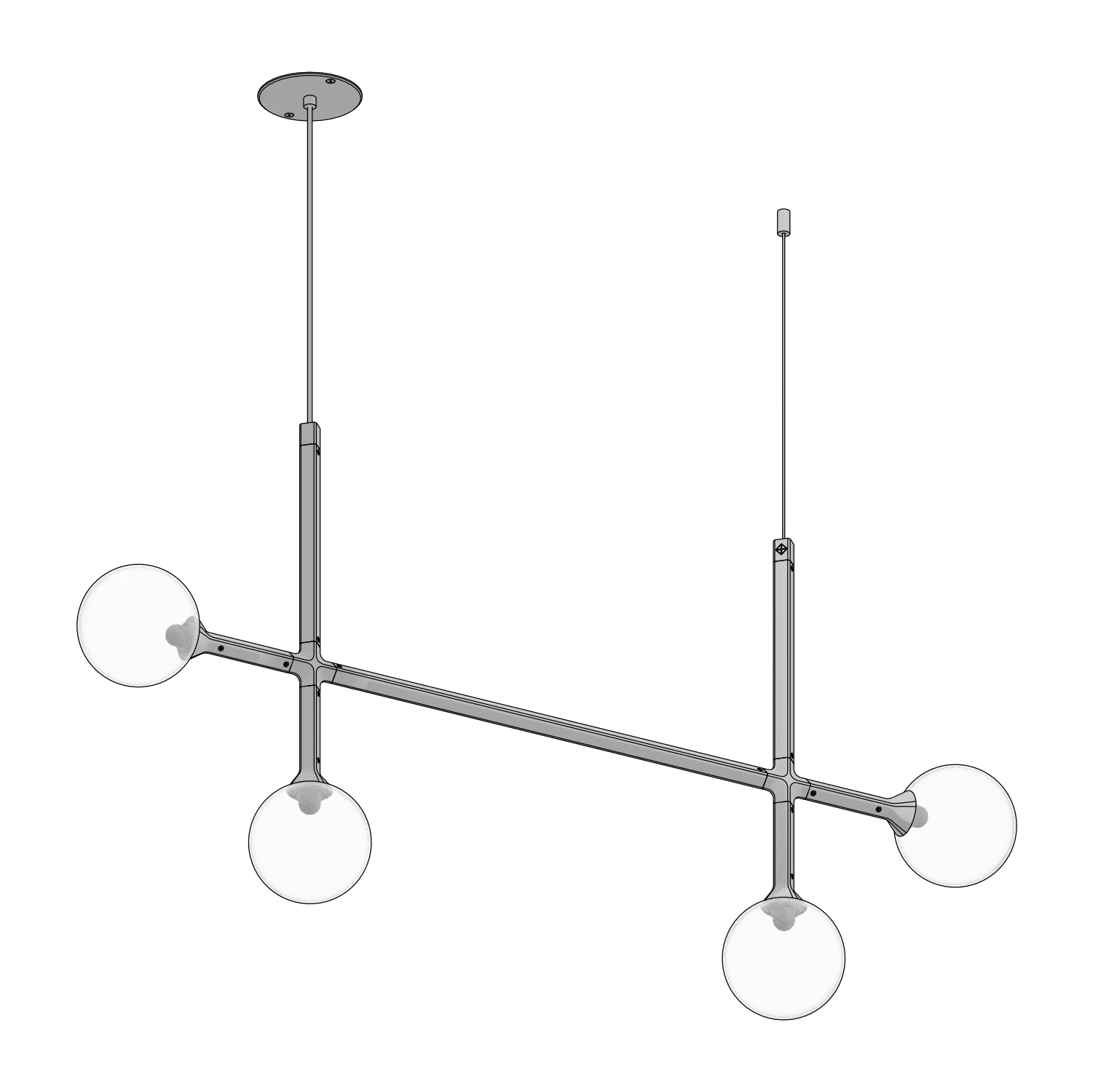

JUNIP 04-002 line drawing
DrawingJUNIP 04-002
Dimensions (in)
W42 15/16
D4.5
H21 7/16
Max drop110

42 15/16 W × 4.5 D × 21 7/16 H in · max drop 110 in

Not to scale

Lake + Wells · JUNIP 04-002
