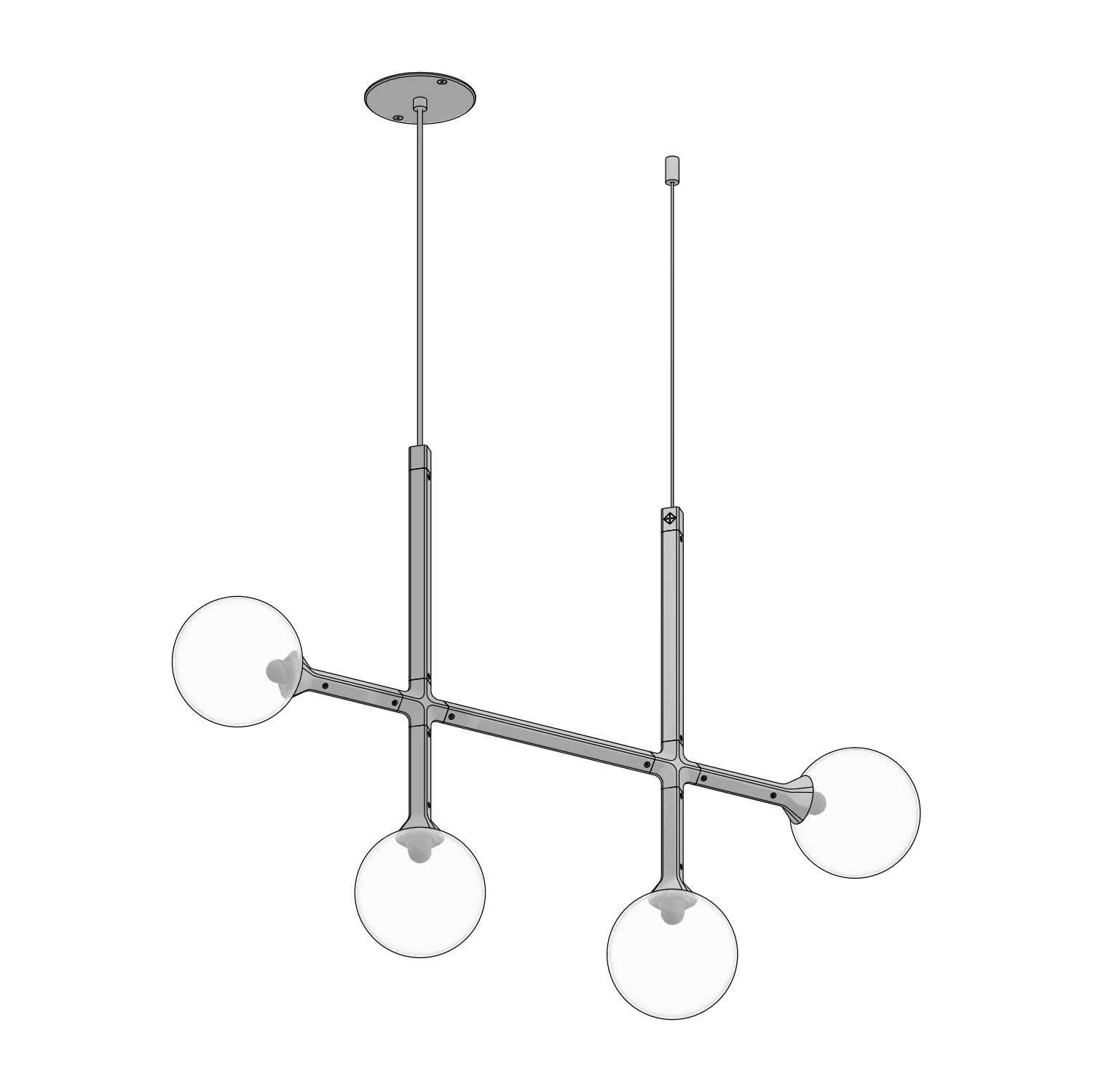

JUNIP 04-001 line drawing
DrawingJUNIP 04-001
Dimensions (in)
W31 15/16
D4.5
H21 7/16
Max drop110

31 15/16 W × 4.5 D × 21 7/16 H in · max drop 110 in

Not to scale

Lake + Wells · JUNIP 04-001

More from the JUNIP Edition

View all layouts
JUNIP 04-002 drawingJUNIP 04-00242 15/16 W × 4.5 D × 21 7/16 H inJUNIP 04-003 drawingJUNIP 04-00320 15/16 W × 20 15/16 D × 13 1/2 H inJUNIP 04-004 drawingJUNIP 04-00420 15/16 W × 20 15/16 D × 46 1/2 H inJUNIP 05-001 drawingJUNIP 05-00120 15/16 W × 20 15/16 D × 32 7/16 H inJUNIP 05-002 drawingJUNIP 05-00264 15/16 W × 4.5 D × 15 15/16 H inJUNIP 07-001 drawingJUNIP 07-00120 15/16 W × 20 15/16 D × 54 7/16 H in
