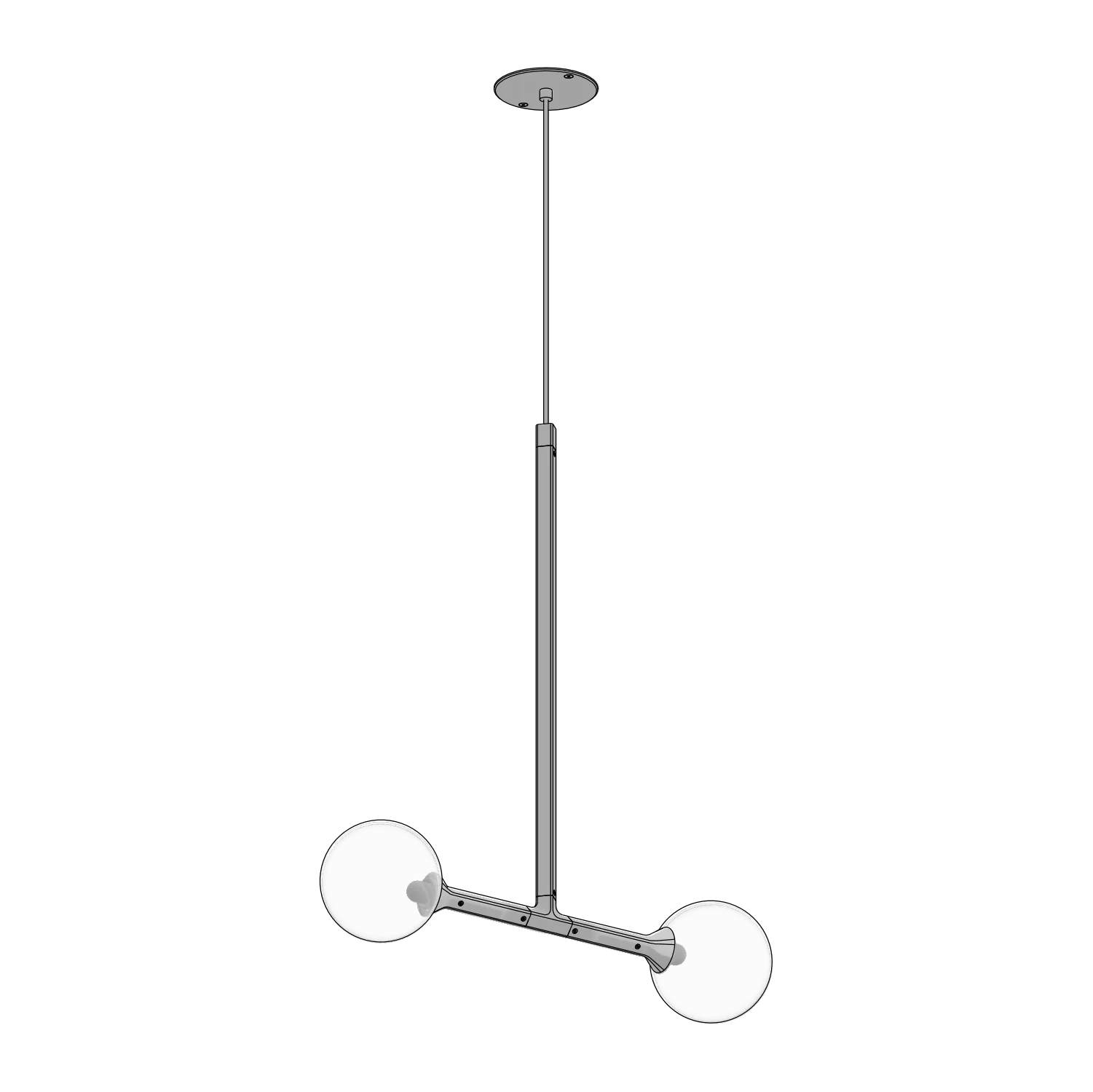

JUNIP 02-001 line drawing
DrawingJUNIP 02-001
Dimensions (in)
W20 15/16
D4.5
H24 1/2
Max drop110

20 15/16 W × 4.5 D × 24 1/2 H in · max drop 110 in

Not to scale

Lake + Wells · JUNIP 02-001
